The system
How it works.
One lift, two waves, back to the start — and the ramp modules that decide how the face rides.
The circuit
One lift, two waves, back to the start.
Follow a litre of water around the loop. It is raised exactly once — everything after that is height being spent.
The ramp
The wave is a specification, not a casting.
The ramp is not poured concrete. It is an assembly of glass-fibre reinforced hollow elements, ballasted with water from the pool itself. Change the modules and you change the wave.

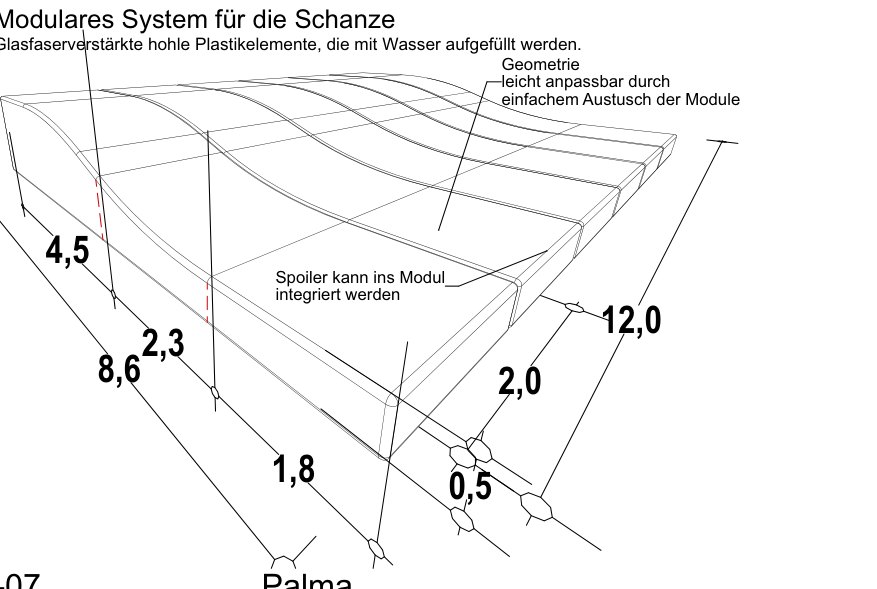

Ramp module “Geometrie leicht anpassbar durch einfachen Austausch der Module.”
Because the modules are hollow and filled on site, they arrive light and sit heavy. A different wave later is a swap, not a demolition — the same basin can run a forgiving learner face in the morning and a steep performance wall in the afternoon.
Planner
Size a ramp.
12.0 m rideable width
Derived from the Palma drawing set on the basis of 2.0 m of rideable width per module and an 8.6 m module depth; the built configuration is six modules per wave. Indicative geometry for early feasibility only — not a quotation, and no substitute for a hydraulic study.
